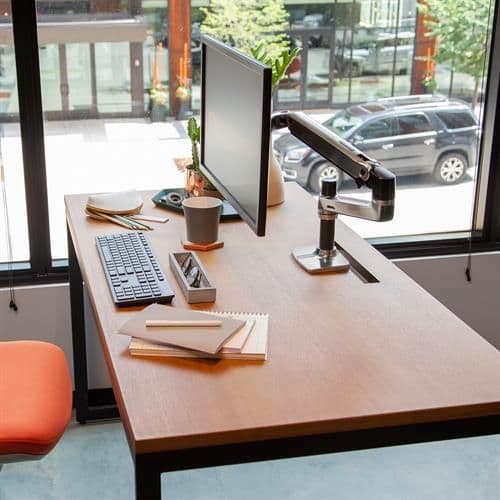

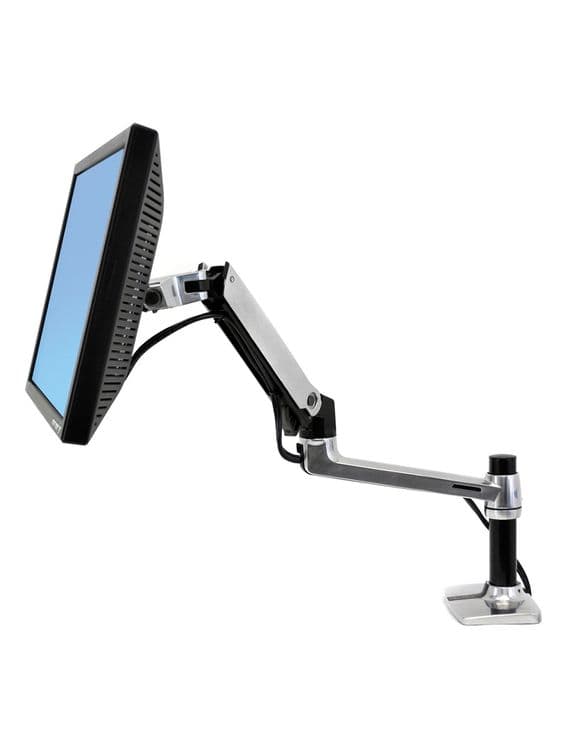

LX Desk Mount LCD Monitor Arm
Experience the Ultimate Versatility and Durability
10 Year Warranty
Elevate your workspace with the LX Desk Mount LCD Monitor Arm. Crafted with high-quality polished aluminium, this sleek and streamlined mount combines aesthetics with functionality, providing the perfect solution for maximising your workspace and optimising your display for increased productivity.
Key Features
Complete Kit: Includes arm, extension, base, 2-piece clamp, grommet mount, 8" pole, and attachment hardware.
Versatile Configuration: Can be configured to hold a laptop instead of an LCD display with the accessory Notebook Tray (50-193-200).
Quality Tested: 10,000-cycle test applied to lift mechanism ensures years of trouble-free height adjustment.
Durable Construction: Aluminium construction offers greater durability and enhanced aesthetics.
Compact Design: Arm folds back over the base into a compact retracted position, perfect for space-constrained areas.
Cable Management: Features a cable management system to route cables under the arm.
Specifications
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm).
Weight Capacity: 7 to 25 lbs (3.2 to 11.3 kg). Note: Monitors greater than 20 lbs may have a reduced vertical range of motion by up to 4.5" (11 cm). Monitor depth greater than 3.5" (8.9 cm) may diminish capacity.
Installation Notes: If installed on WF-T or WF-TL, the maximum allowable monitor weight is reduced to 14 lbs (6.4 kg). A separately ordered Grommet Mount (98-017) is required for attachment.
Tilt Range: 70° backward, 5° forward.
Compliance: Certified in compliance with ANSI/BIFMA indoor air quality standards for VOC emissions.
Desk Clamp: Attaches to surface edge 0.4" to 2.4" (10 to 60 mm) thick.
Grommet Mount: Attaches through surface hole 0.31" to 2" (8 to 50 mm) wide and up to 2.25" (57 mm) thick. Note: Grommet Mount not included with white model of arm (45-490-216).
Shipping Dimensions: 22.6" x 9.1" x 5.9" (57 x 23 x 15 cm).
Warranty: Ten years.
Enhanced Workspace Flexibility
With an unmatched range of motion, simply touch the monitor to adjust it up, down, forward, or back according to your comfort. Perfect for both professional and home office settings, the LX Desk Mount LCD Monitor Arm offers the flexibility and durability needed to create an ergonomic workspace tailored to your needs.
Note: Monitor not included. This arm cannot be retrofitted with a Low-Profile Clamp. Make the best of your viewing experience with the LX Monitor Mount, your solution for a dynamic and efficient workspace.
